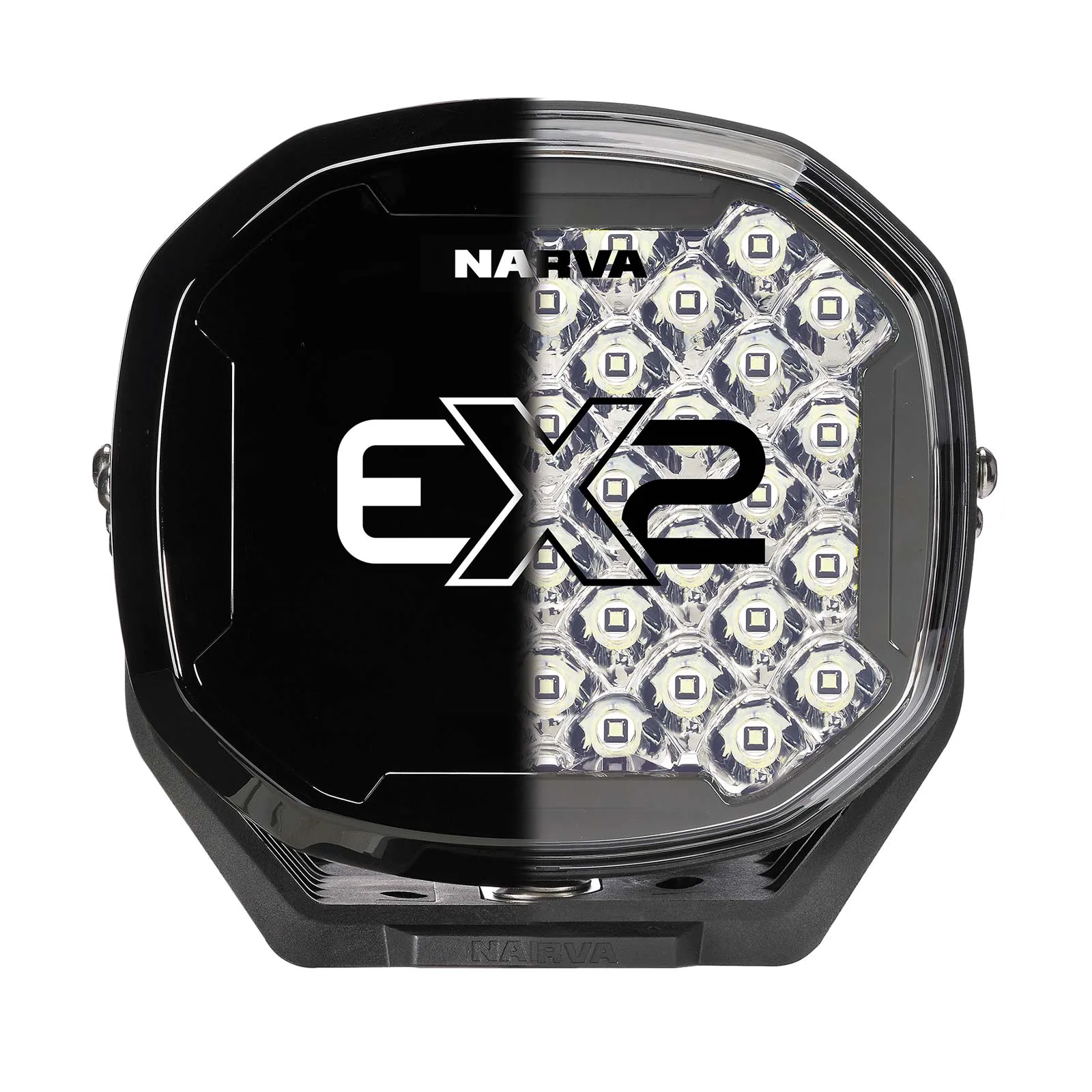

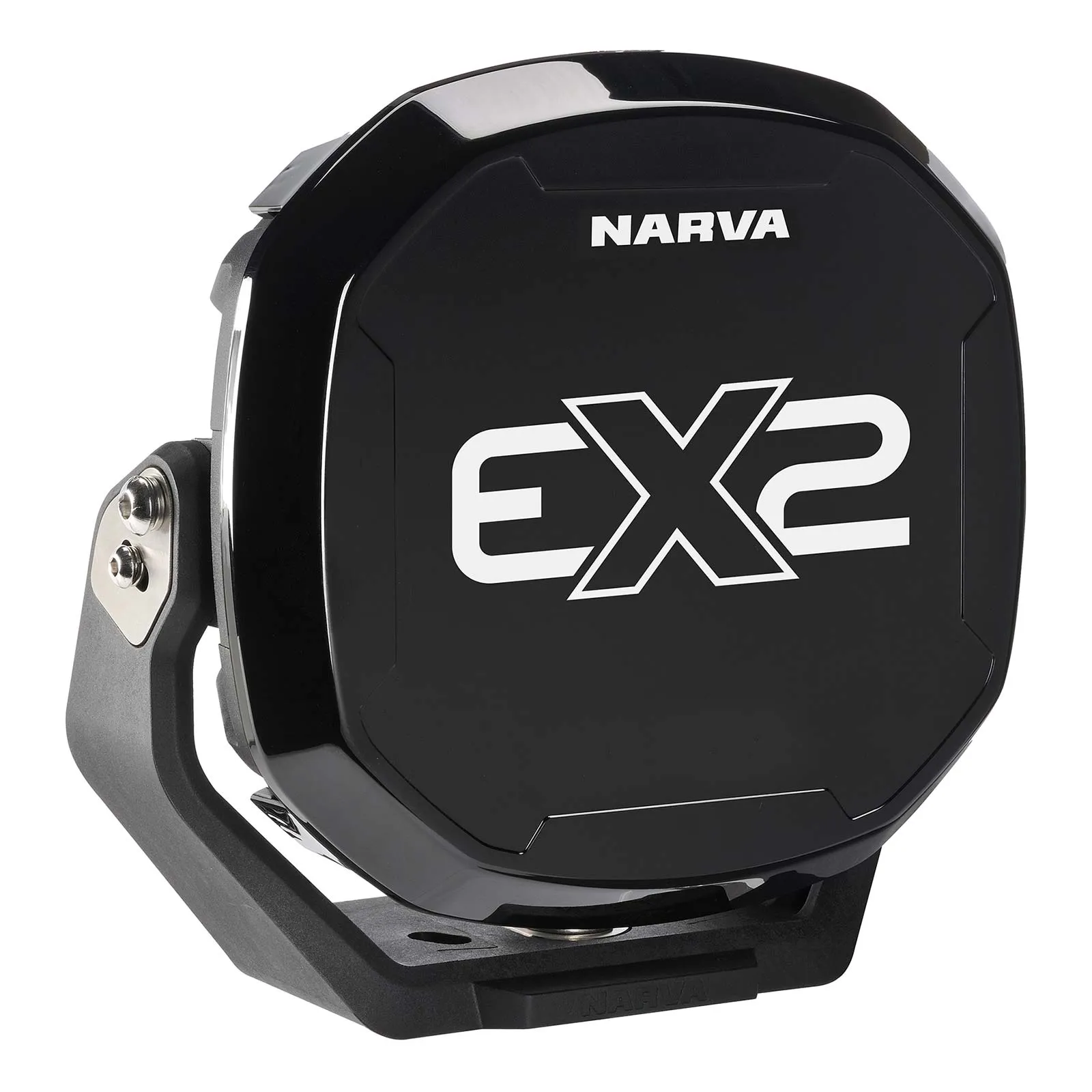

Narva 12/24V 9" EX2 Driving Light PAIR 72182
Introducing the NARVA EX2 range of driving lights which has been designed with the DIY 4WD enthusiast in mind and is also ideal for a wide range of fleet and transport applications!
With EXceptional beam pattern performance, EXtra-easy installation, EXceptional build quality and EXtensive customisation options to EXpress yourself.
| Input Voltage | 9 – 33V |
|---|---|
| Current Draw | @13.5V: 19.2A |
| LEDs | 40 x 5 Watt Cree LEDs |
| Lumens | 27,200 raw / 19,400 effective |
| IP Rating | IP68 & IP69K |
| Colour temperature | 5700°K |
| Other | Beam type: Hybrid |
| Raw Lumens | 13600lm |
| Effective Lumens | 9700lm |
| Beam Distance | 700m @ 1lux |
| Beam Width | 60m @ 1lux |
| Colour Temperature | 5700K ±5% |
| Colour Rendering Index (CRI) | 70 |
| Height | 225 |
| Depth | 102 |
| Width | 221 |
| Weight | 2620g ±10% |
| Cable Length | 0.5m |
| Housing | Pressure die-cast aluminium |
| Lens Material | Hard coated polycarbonate |
| Lens Protector | Black ABS |
| Bracket | Nylon + 30% Glass-Filled |
| Mounting | 3 bolt mount |
| Input Voltage | 9-33V DC |
| Current Raw (@13.5V/@28V) Per Lamp | 9.62/4.64 |
| LED's | 40 |
| LED Spec | 5W CREE LED |
| LED Power | 130 |
| Protection |
Reverse Polarity Protection, Over and Under Voltage Protection |
| IP Rating | IP68 & IP69K |
| Operating Temperature | -40 - +60° |
| ECE R10 | ✓ |
| RCM | ✓ |
| Warranty | 7 years |
| Wiring |
Red - Positive Yellow - High Beam Trigger Black - Negative |
| Kit Includes |
2 x 9” Driving Light 2 x BLACK Lens Protectors 1 x Colour Trim fitted on lamp (Electric Blue) 1 x Colour Trim (Slate Grey) 1 x Wiring Harness Lead Product Instructions S/S Hardware |
