Projecta IC35 (supersedes the model IC3500)

The Projecta IC35 is an extremely versatile charger that is capable of being set to charge smaller batteries found in recreational equipment right up to the huge power demands of large battery banks often found on houseboats and yachts.

The ideal charger for use on larger deep cycle battery systems, with the ability to switch between multi-chemistries with just a press of a button.

Compatible with use with generators (requires approx. 650 watts)

Comes with a 5 year warranty

Specifications:

Part No.	IC35

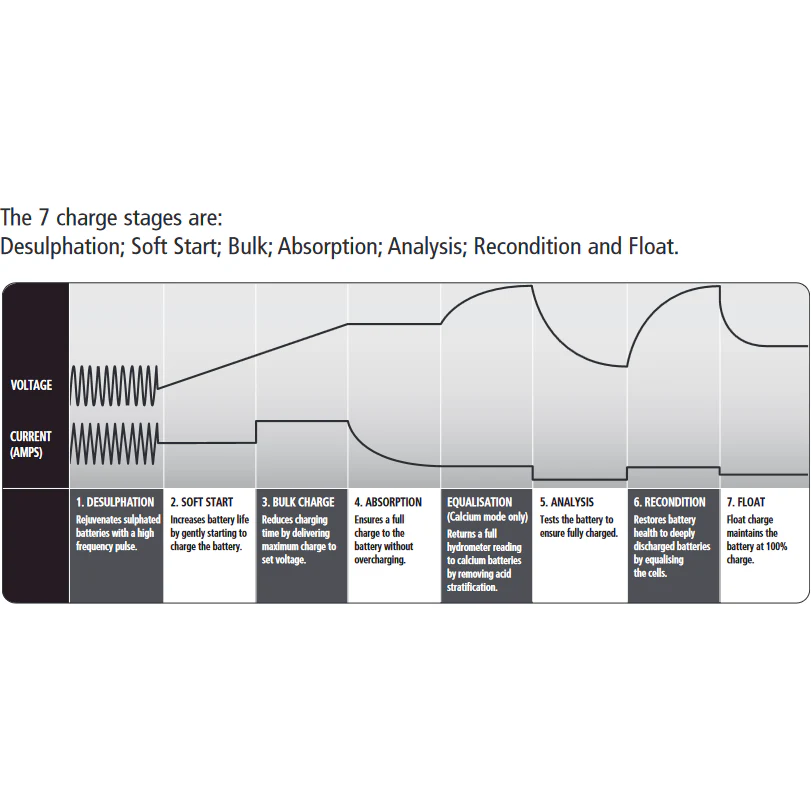

Type	7 Stage Automatic
Input	240VAC, 50Hz, 450w
Output	12V
Output Current	2, 8, 16, 35A
Minimum Start Voltage	2.5V
Back Drain	Charger 1mA, with remote 2mA
Approvals	Electrical Safety, EMC
Charge Voltage	14.1V (GEL), 14.4V (AGM), 14.7V (WET)
	16.0V (CALCIUM), 14.2V (LITHIUM)
L.E.D Charge Indication
Screen	Back lit LCD screen
RED LIGHT ON	Power On
BLUE LIGHT ON	Charging
GREEN LIGHT ON	Fully Charged and maintaining, no need to turn off

Battery Charge times:

	Voltage	Battery Size	Charge time
Automotive	12V	80-4200CCA	7 - 24Hrs
Marine	12V	110-5800MCA	7 - 24Hrs
Deep Cycle	12V	14 - 700Ah	7 - 24Hrs
Deep Cycle	12V	4 - 350 Ah	2 - 10Hrs



Download Instructions



How to modify the IC35 leads for use of an Anderson or lugs
