Discover ROADVISION’s innovative ISLS Series LED interior/exterior strip lamps, designed to illuminate tight spaces with unparalleled versatility, brightness, and energy efficiency. Now available in both the original pure white and a new amber-white version, offering distinct advantages for various activities. The 4500K white emits maximum illumination, while the amber hue enhances outdoor ambiance and reduces insect attraction, perfect for camping. Engineered with a surface mount design and offered in four lengths from 180mm to 590mm, with a multi-voltage 10-30V input and integrated switch, these lamps adapt to any application. With a slim 13mm profile and an IP67 rating, they’re dust and water-proof for interior or exterior use in extreme conditions. Powered by high-performance LEDs, the ISLS Series ensures optimal performance and energy efficiency, elevating your camping experience with ROADVISION’s cutting-edge lighting solutions.
* Listing is for 1 of the following DUAL COLOUR Models
- ISLS290MV-AW
- ISLS180MV-AW
RANGE FEATURES
- LED strip lighting range suitable for interior or exterior applications

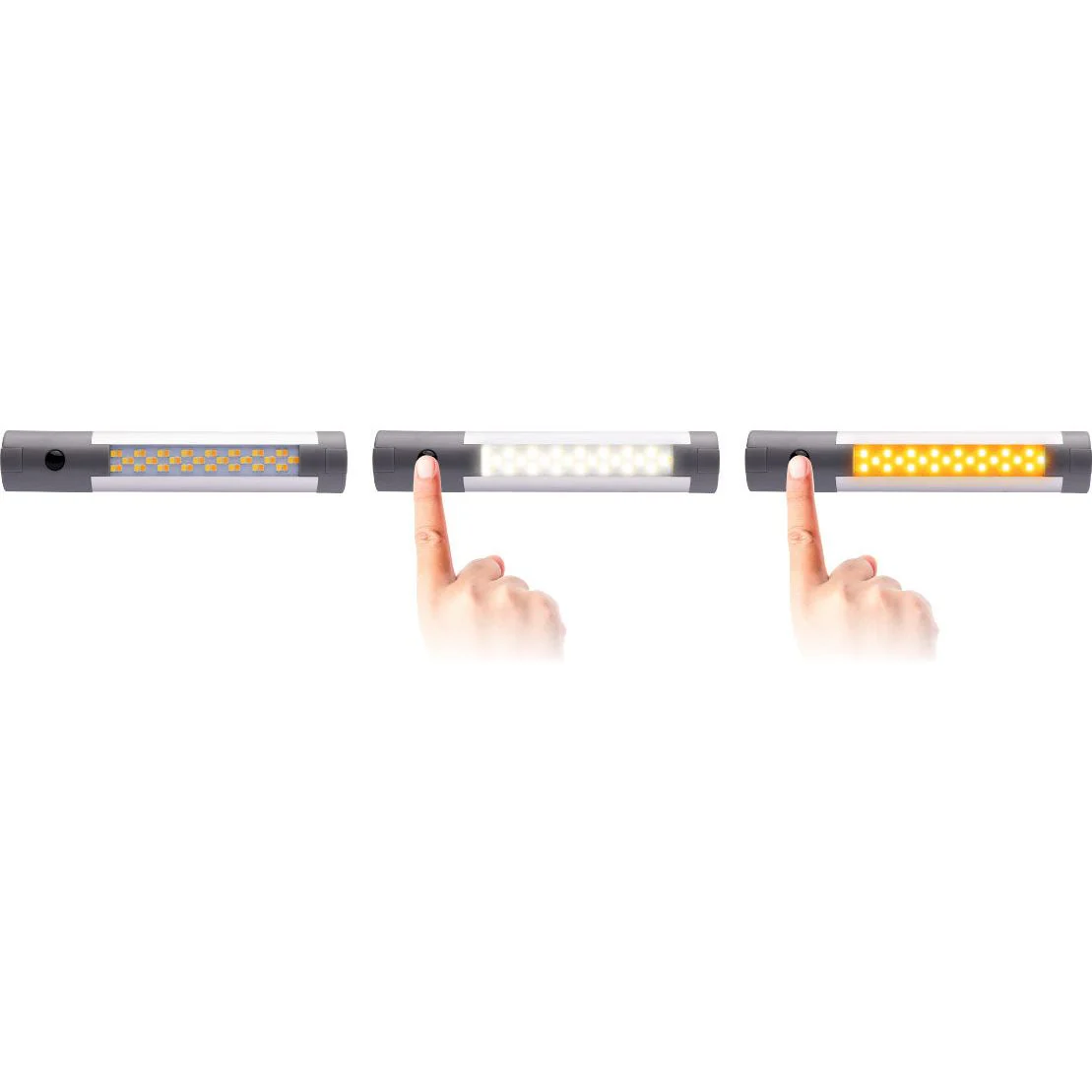

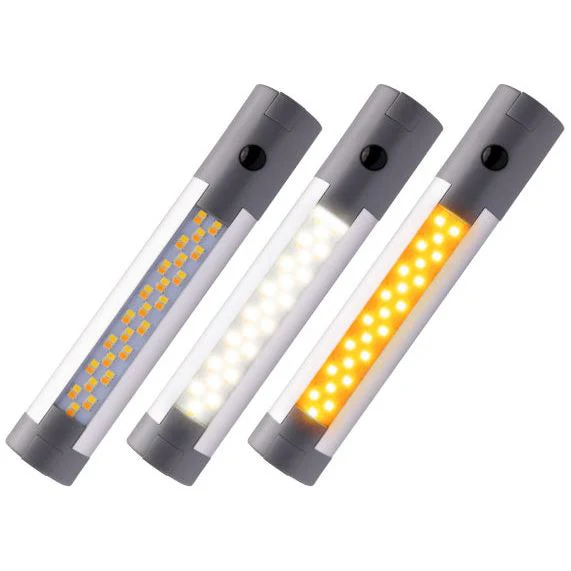

- Available in white or amber-white versions
- Multi-volt 10-30V DC Input
- High performance light output up to 720lm
- Super low current draw of 0.13 to 0.65 amps @ 13.8V
- 100,000 hour rated LED lifespan with solid state technology
- Lightweight durable aluminium housing
- Water and dust proof IP67 rated
- Integrated On/Off switch
- Surface mount with screw caps
- Shallow mounting depth for easy installation
- Supplied pre-wired
RANGE SPECIFICATIONS – AMBER/WHITE
| Part Number | ISLS180MV-AW | ISLS290MV-AW | ISLS440MV-AW | ISLS590MV-AW |
|---|---|---|---|---|
| Description | Interior Lamp Amber/White LED 10-30V 2W Strip Lamp 180mm With Switch | Interior Lamp Amber/White LED 10-30V 4W Strip Lamp 290mm With Switch | Interior Lamp Amber/White LED 10-30V 6W Strip Lamp 440mm With Switch | Interior Lamp Amber/White LED 10-30V 9W Strip Lamp 590mm With Switch |
| Input Voltage | 10-30V DC | 10-30V DC | 10-30V DC | 10-30V DC |
| Lumens Light Output (Effective) | 144lm (White Only) | 288lm (White Only) | 504lm (White Only) | 720lm (White Only) |
| Light Source | 24 White LED’s 24 Amber LED’s |
48 White LED’s 48 Amber LED’s |
84 White LED’s 84 Amber LED’s |
120 White LED’s 120 Amber LED’s |
| Power Watts | 2W | 4W | 7W | 9W |
| Current Draw Amps | 0.13A @ 13.8V | 0.26A @ 13.8V | 0.46A @ 13.8V | 0.65A @ 13.8V |

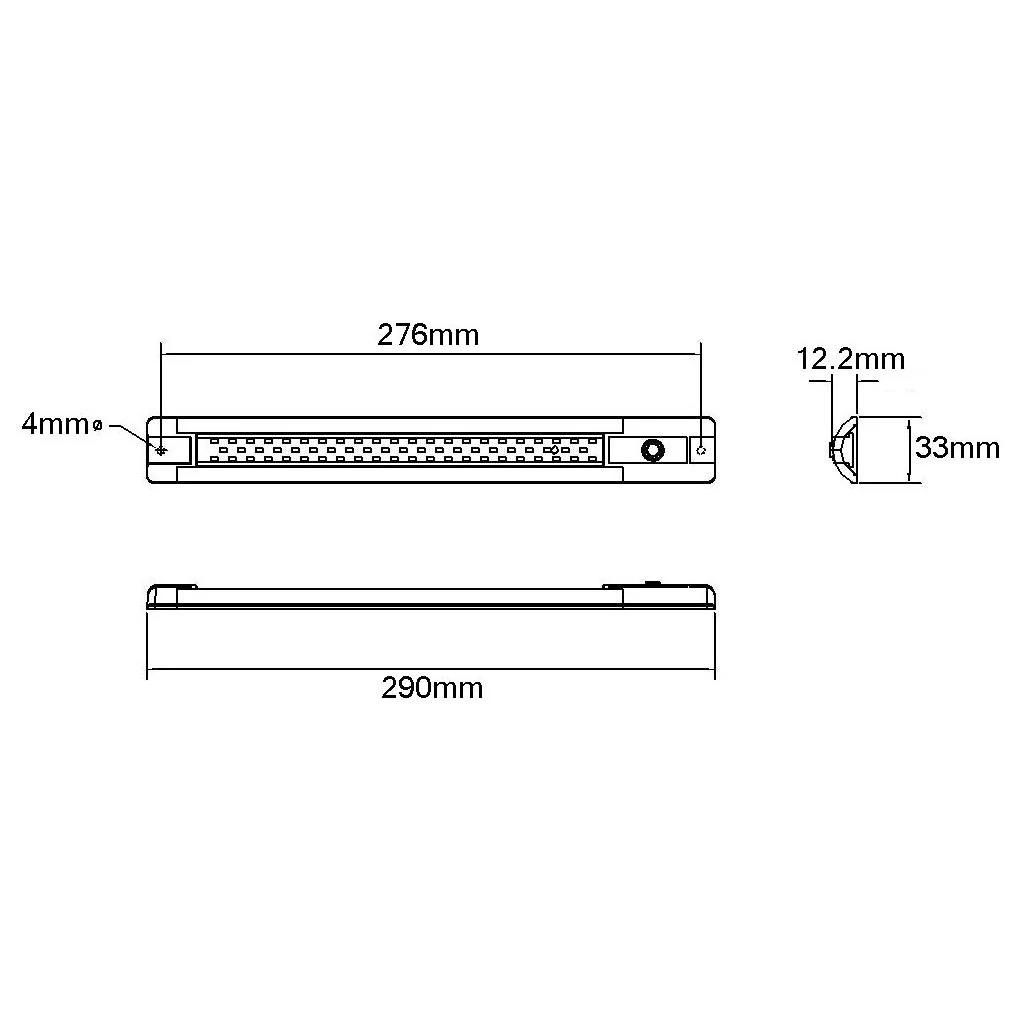

| Dimensions | 180x32x13mm | 290x32x13mm | 440x32x13mm | 590x32x13mm |
| Mounting Holes | 166mm Centres | 276mm Centres | 426mm Centres | 576mm Centres |
| Cable Length | 500mm Sheathed | 500mm Sheathed | 500mm Sheathed | 500mm Sheathed |
| Wiring | Neg - Black, Pos - Red | Neg - Black, Pos - Red | Neg - Black, Pos - Red | Neg - Black, Pos - Red |
| Weight | 37g | 59g | 90g | 120g |
